AWWA C515 Gate Valve

AWWA C515 Gate Valve

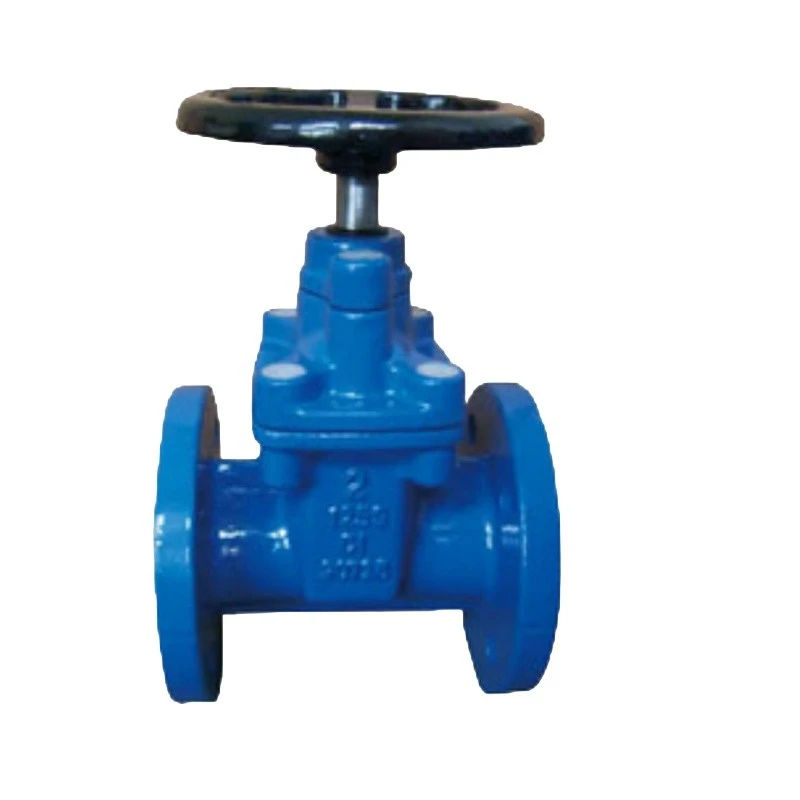

The AWWA C515 Gate Valve is a resilient seated gate valve designed for municipal water supply, water treatment facilities, and industrial pipeline systems. Manufactured in accordance with AWWA C515 standards, this valve features a ductile iron body, EPDM/NBR rubber-encapsulated wedge, and stainless steel stem, providing excellent sealing performance, corrosion resistance, and long service life.
Compared with conventional cast iron gate valves, the AWWA C515 resilient wedge gate valve offers reduced operating torque, bubble-tight shutoff, and improved durability for modern water distribution networks.
Share to
Send Inquiry
Description
Technical Parameters

Key Features

Manufactured in compliance with AWWA C515/C509 standard.

Face-to-face dimensions conform to ANSI B16.10 Class 125.

Flange drilling dimensions comply with ANSI B16.1 Class 125

Pressure rating: 125S / 200WOG.

Ductile iron body and bonnet for enhanced strength.

EPDM or NBR rubber-encapsulated wedge for reliable sealing.

Stainless steel stem for superior corrosion resistance.

Low operating torque and smooth operation.

Suitable for underground and above-ground installations

Available in sizes from 2" to 24".



Specification



MATERIAL LIST

NO.

Part Name

Material

Material Standard

1

Body

Ductile Iron

ASTM A536 65-45-12

2

Wedge

EPDM/NBR

ASTM A536 65-45-12

3

Wedge Skeleton

Ductile Iron

ASTM B584

4

Yoke Bushing

Cast Brass

ASTM A536 65-45-12

5

Bonnet

Ductile Iron

ASTM A536 65-45-12

6

Stem

Stainless Steel

ASTM 420 S42000

7

Circlip

Steel

ASTM A307 B

8

Gland

Ductile Iron

ASTM A536 65-45-12

9

Dust Proof Cover

EPDM/NBR

-

10

Handwheel

Ductile Iron

ASTM A536 65-45-12

11

Bolt

Stainless Steel

AISI 304

12

O Ring

EPDM/NBR

-

13

O Ring

EPDM/NBR

-

14

Gasket

Delrin

-

15

O Ring

EPDM/NBR

-

16

Gasket

EPDM/NBR

-

17

Bolts

Steel

ASTM A307 B
1



PRESSURE CLASS: 125



PRESSURE

DN

D

L

D1

D2

D3

b

n-d

125

2"

152

178

120.5

92

85.6

15.9

4-19

2.5"

178

190

139.5

105

99

17.5

4-19

3"

191

203

152.5

130

107.8

19.1

4-19

4"

229

223

190.5

157

72.9

23.8

8-19

5"

254

254

216.0

186

82.6

23.8

8-22

6"

279

267

241.5

216

92.6

25.4

8-22

8"

343

292

298.5

270

114.2

28.6

8-22

10"

406

330

362

324

93.7

30.2

12-25

12"

483

356

432

381

111.8

31.8

12-25

14"

533

381

476

413

123.2

35

12-29

16"

597

406

539

470

105.4

36.6

16-29

18"

635

432

578

533

112.8

39.7

16-32

20"

699

457

635

584

99.3

42.9

20-32

24"

813

508

749.5

692

117.2

47.6

20-35
